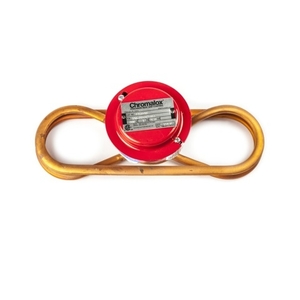

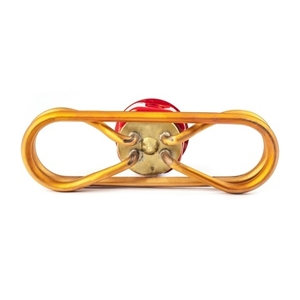

Chromalox Flanged Immersion Heater TTUH-30A-272436
Final pricing and shipping details will be determined during the Expert Check process
Category:
Flanged Immersion Heaters
The Chromalox Flanged Immersion Heater TTUH-30A-272436 for food equipment/water applications is available from Big Chief, an authorized Chromalox distributor. Flanged immersion heaters are one of the most widely used methods for commercial heating of gases and liquids, such as water, oil, heat transfer fluid, and corrosive solutions. Designed for use in tanks and pressurized vessels, they are easy to install and maintain to provide heat for many processes. Flanged immersion heaters are used in a wide variety of applications, such as hot water storage tanks, warming equipment, preheating oil, food processing equipment, cleaning and rinsing tanks, heat transfer systems, process air equipment, boiler equipment, and freeze protection. The direct immersion method is energy efficient and easily monitored and controlled.
Brand: Chromalox
More about Chromalox Flanged Immersion Heater TTUH-30A-272436
Chromalox TTUH Flanged Immersion Heater - feature overview:
- 120, 208, 240, and 480 volt, 1 and 3 phase
- Bottom mounted
- High watt densities
- 1 -12 kW
- Copper sheath elements
- Brass flange
- Without integral thermal cutout
- Common applications include steam tables, kettles, and humidifiers
| Name: | Chromalox Flanged Immersion Heater TTUH-30A-272436 |
|---|---|
| Part Number: | TTUH-30A-272436 |
| Manufacturer: | Chromalox |
| Lead Time: | Usualy ships in 3-5 Business Days (expedited shipping may be available please contact us at 1-800-835-4328 for more information) |
| Minimum Liquid Depth: | 2 in. |
| Number of Elements: | 1 |
| Phase: | 1 |
| Product Line: | Chromalox TTUH Flanged Immersion Heater |
| Volts: | 208 |
| Watt Density (W/in^2): | 55 |
| kW: | 3 |
Download documents
Browse and download product-related documents, including technical specifications, catalogs, and user guides
