Expert Check Only
SKU:
5900J+021+0601F
Available to Order

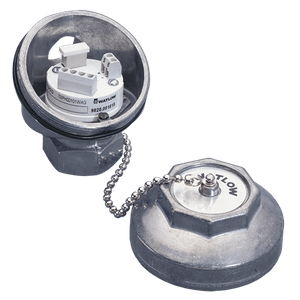

Watlow 5900J+021+0601F Transmitter
Final pricing will be determined during the Expert Check process
Category:
RTDs (General)
As an authorized Watlow distributor, Big Chief carries the Watlow 5900J+021+0601F Transmitter. Watlow's SERIES 5900 temperature transmitter delivers remarkably accurate temperature measurement and improves reliability to reduce downtime and costs. The SERIES 5900 is isolated to 1500VAC and features full linearization between temperature sensor input signal and the 4-20mA output signal. The transmitter is programmed using a separate connection cable and an easy-to-use Windows-based software program. It is designed to fit directly into universal aluminum or universal iron connection heads with a separate mounting kit. Isolated transmitters provide isolation from input to output thus eliminating ground loops and signal integrity. Additional options include insulation resistance monitoring between sensor and ground to prevent inaccurate measurements due to insulation breakdown. The 5900 SERIES two-wire signal conditioner uses surface mount and digital technology with non-volatile memory. There is no need to use a separate thermocouple/RTD calibrator or individual resistors.
Brand: Watlow
More about Watlow 5900J+021+0601F Transmitter
What you get with the Watlow 5900 Transmitter:
- CE marked: Compliant to electromagnetic interference
- Full temperature to thermocouple signal linearization throughout the complete operation temperature span: Ensures signal accuracy
- Full isolation from input to output: Eliminates ground loops for high data integrity
- Programmable: Ensures greater convenience for future changes and inventory efficiency
- Fits directly into connection head: Easy to install
- User selectable input types: Thermocouple calibration Types B, C, E, J, K, N, R, S and T; RTD Pt100 and Pt1000 including four-wire
- Optional insulation resistance monitoring: Prevents inaccurate measurements due to insulation breakdown
| Name: | Watlow 5900J+021+0601F Transmitter |
|---|---|
| Part Number: | 5900J+021+0601F |
| Manufacturer: | Watlow |
| Case Quantity: | 1 |
| High Temperature: | +0601 F |
| Lead Time: | 3-5 Business Days (Call us at 1-800-835-4328 for next day shipping) |
| Low Temperature: | +021 F |
| Product Line: | Watlow Transmitters |
| Sensor Type: | Type J T/C |
| Series: | Linearized T/C or RTD |
