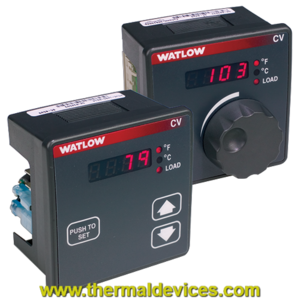

Watlow CV Series Temperature Controller CVBCMH00100100A
Final pricing will be determined during the Expert Check process
Category:
Temperature Controllers
As an authorized Watlow distributor, Big Chief carries the Watlow CV Series Temperature Controller CVBCMH00100100A. The CV and CF series controllers are basic temperature and limit controllers that can provide an economical solution for a wide range of applications. Big Chief is an authorized Watlow distributor.
Brand: Watlow
More about Watlow CV Series Temperature Controller CVBCMH00100100A
What you get with the Watlow CV Temperature Control:
- Four character LED display improves set point selection accuracy
- Adjustable set points for control flexibility
- Heat or cool operation for application flexibility
- Multiple mounting options minimize installation time
- Agency approvals meet certification requirements/compliance
| Name: | Watlow CV Series Temperature Controller CVBCMH00100100A |
|---|---|
| Part Number: | CVBCMH00100100A |
| Manufacturer: | Watlow |
| Control Type: | Heat |
| Lead Time: | 3-5 Business Days (Call us at 1-800-835-4328 for next day shipping) |
| Options & Features: | Standard |
| Package: | Nema 4X Panel Mount, Tactile Keys (Screw Style) |
| Power Supply: | 120VAC, switched DC output |
| Product Line: | CV Controllers |
| Sensor Type and Scale: | T/C Type T Fahrenheit (-454 to 750? F) |
| Series: | 1/8 DIN square package, On-off controller, four character seven segment display, rotary set point adjustment with tactile key order option |
